Digital Shelf Label · LCD

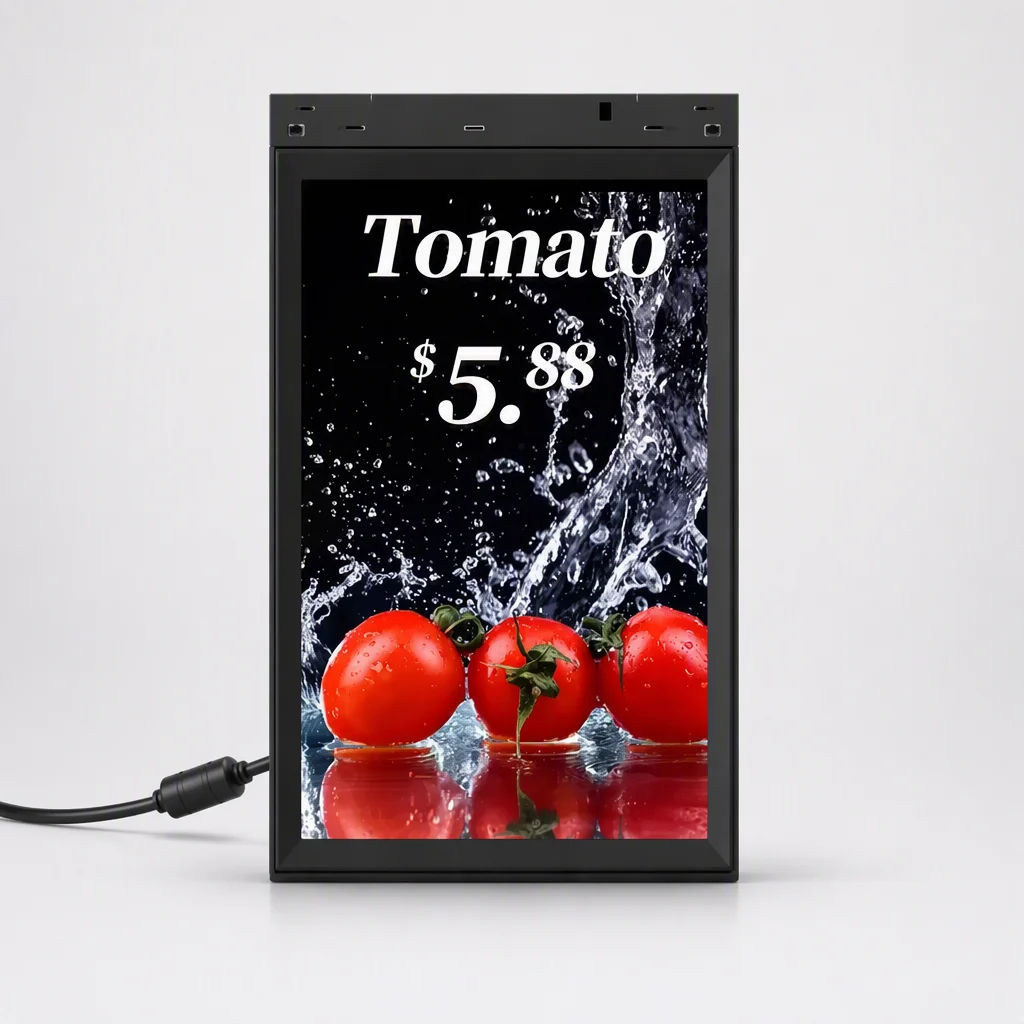

10.1 inch Digital Shelf Label
DFS-A10S is the color display that belongs on a shelf run: a 10.1″ IPS panel at 280 cd/m² with 175° viewing, full-array LED backlight and a 2000 K–10000 K adjustable color temperature for brand-lit counters. Content — JPG, PNG or MP4 — arrives over WiFi/Bluetooth or the HDMI 2.1 input from a cloud CMS with an open API/SDK.
Key facts
- Panel10.1″ IPS · 280 cd/m²
- Viewing angle175°
- Color temperature2000–10000 K (adjustable)
- InstallationCeiling mount · floor stand
- Power≤ 30 W
Why retailers choose it
- 2000 K–10000 K adjustable color temperature lets the display sit inside a brand counter lighting scene instead of fighting it.
- Full-array LED backlight on an IPS panel — 280 cd/m² and 175° viewing angle, so the promo reads across the aisle, not straight on.
- Ceiling mount or floor stand: the same device serves two merchandising positions without a second SKU.
- Cloud CMS with open API/SDK and remote device management — one publish reaches a whole chain, no on-site device passes.
- ≤ 30 W with HDMI 2.1 input, WiFi/Bluetooth, and 128 MB for JPG/PNG/MP4 media: a store-side display without a separate player box.
- 20 pcs/Box packing and a 1-year warranty per the spec sheet make chain-wide rollouts easy to plan and to service.
Full specifications
Datasheet
DFS-A10S is an active LCD device in a mostly e-paper line — it runs on ≤ 30 W and is meant to stay on through trade hours. The table follows the product specification sheet: panel and light engine, interfaces, media formats and the cloud control path.
| Model | DFS-A10S |
| Product name | LCD Price Tag |
| Screen | 10.1 inches · IPS panel |
| Brightness | 280 cd/m² |
| Viewing angle | 175° |
| Light source | Full-array LED |
| Color temperature | 2000–10000 K (adjustable) |
| Input interface | HDMI 2.1 |
| Communication | Bluetooth / WiFi |
| Power consumption | ≤ 30 W |
| Dimensions | 258 × 157 × 14.2 mm |
| Weight | 340 g ± 5 g |
| Memory | 128 MB |
| Media formats | JPG · PNG · MP4 |
| Operating temperature | 0–50 °C |
| Colors | Black / White / Wood grain |
| Installation | Ceiling mount · floor stand |
| CMS | Cloud-based CMS · open API/SDK · remote device management |
| Packing | 20 pcs/Box |
| Warranty | 1 year |
Brand Counters
Full-color IPS at 280 cd/m² with 2000 K–10000 K color temperature keeps the demo and the price story on the same lighting plan as the brand counter.
Superstores & Malls
Tiered price walls at ≤ 30 W, pushed from a cloud CMS — a signage update without a sign crew walking the floor.
Partners & Distributors
Open API/SDK turns the screen into a white-label display module for integrator retrofits — prices and playlists through the same backend.
Samples in one week.
Tell us your fixture layout — we respond with a drawing and pricing within 48 hours.
