Electronic Shelf Labels
Prices change.
Shelves keep up.
Bluetooth 4.2 ESL tags from 2.1″ to 7.5″ e-paper, plus the 10.1″ LCD digital display. Price updates in 3–5 seconds, 5-year replaceable battery, NFC models rated up to 12 years.
Why ESL
The shelf label becomes a system.
Dynamic pricing
Price changes go live in 3–5 seconds on 2.1″/2.9″ tags — no aisle walk, no re-print run.
HQ price control
One cloud CMS governs price display across every store in the chain, from a single back office.
Fewer price disputes
Tag price always matches the POS database, so checkout stops arguing with the shelf label.
Staff saved
No re-pricing before promotions — the team stays on the shop floor instead of at the shelf.
Waterproof & cold
Rated for aquatic and frozen areas — put tags right in the seafood aisle.
Custom interface
BW/BWR colour options, multi-language, barcode and QR display on the same tag.
Best sellers
Three sizes, most stores.
All 5 models
One tag per size, one list.
| Model | Display | Size | Update | Battery & notes |
|---|---|---|---|---|
| ESL 2.1″ | e-paper · BW/BWR | 72.5×36×15 mm | 3–5 s | CR2450×4 · 5-yr life · NFC up to 12 yrs · 0–50 °C |
| ESL 2.9″ | e-paper · BW/BWR | 95×45×13 mm | 3–5 s | Read distance ≥5 m (adjustable) · 180° view |
| ESL 4.2″ | e-paper · 5 frame colours | 109×87×15 mm | 30–50 s refresh | Imported CPU/RF · enhanced TCP · ultra-low-power wake |
| ESL 7.5″ | e-paper · single/double | 178×120×10 mm single · 180×120×54 mm double | seconds-level | Waterproof & low-temperature · end-cap shelf |
| DFS-A10S 10.1″ | IPS LCD · 280 cd/m² · 175° | 258×157×14.2 mm · 340 g | Full-array LED · 2000–10000 K | ≤30 W · HDMI 2.1 · WiFi/BT · cloud CMS · 1-yr factory care |
Cloud & media
Managers edit. Shelves obey.
Cloud CMS
- Batch price changes and scheduled promotions from headquarters over the cloud CMS.
- Tag content stays in sync with the POS database — JPG, PNG and MP4 supported on the 10.1″ display.
- Open API/SDK for integration with retail management, GPO and price-comparison platforms.
10.1″ digital display
- PanelIPS · 280 cd/m² · 175° view
- Colour2000–10000 K adjustable
- Power≤30 W · HDMI 2.1 · WiFi/BT
- FitDesktop / floor stand / ceiling mount
- FinishBlack · white · wood grain
Where they fit
Six retail formats, one tag family.
Supermarket chains

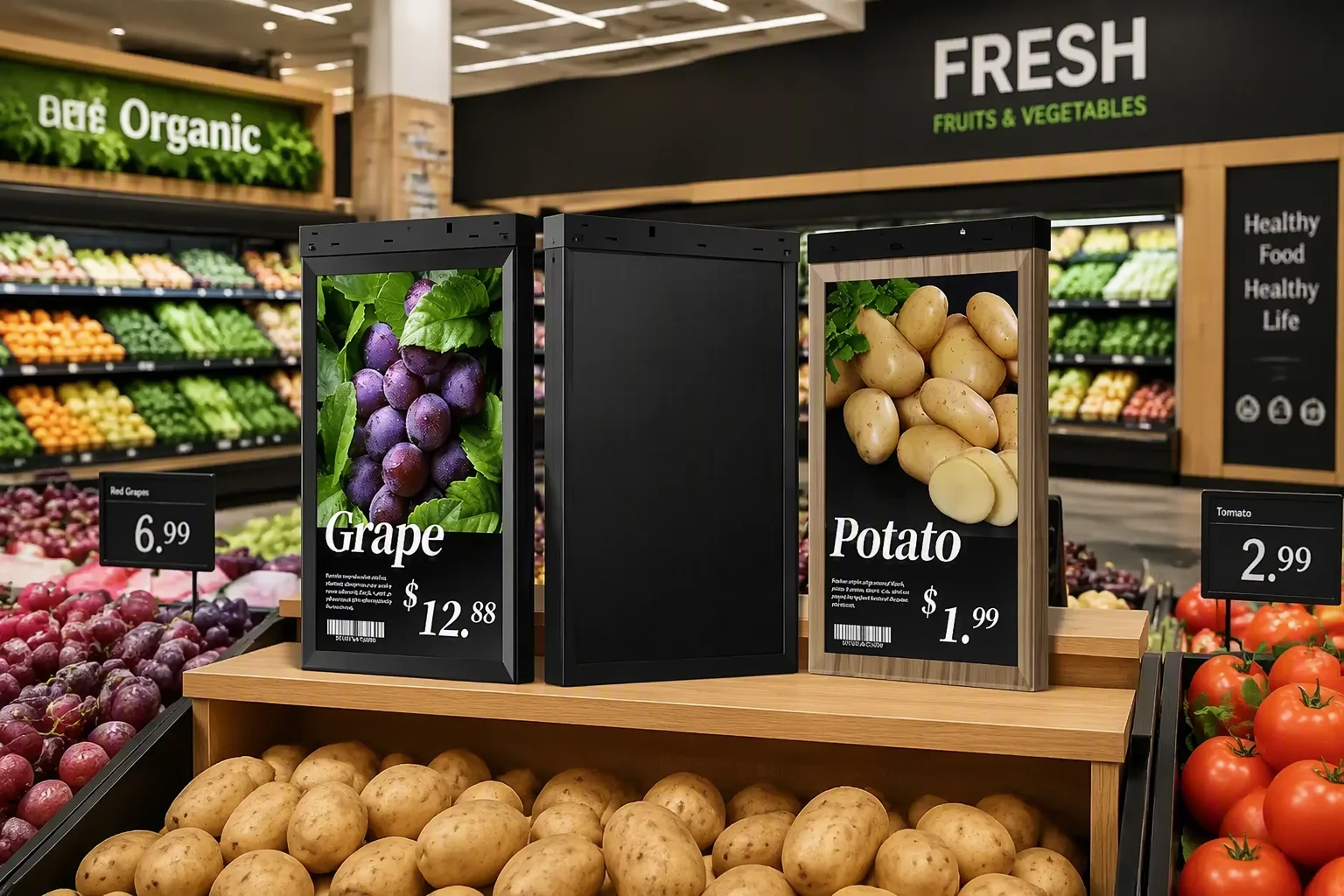

2.1″/2.9″ shelf tags with 3–5 s updates; 7.5″ double-sided for aisle end-caps.
Fresh & frozen
Waterproof, low-temperature tags for the aquatic and frozen sections.
Pharmacies
Multi-language, barcode and QR fields for compliance and shelf information.
Electronics retail
10.1″ digital displays for promotions, brand counters and price showcases.
FAQ
Before you ask.
How long does the battery last?
CR2450×4 cells give about 5 years of service life at 5 refreshes per day; low-power NFC versions are rated up to 12 years. Cells stay replaceable.
How fast does a price change?
On 2.1″/2.9″ tags, a cloud-initiated price update lands in 3–5 seconds. 4.2″ tags refresh on a 30–50-second cycle, and read distance is adjustable to ≥5 m.
Can they run in a frozen aisle?
Yes — the e-paper labels are waterproof and low-temperature resistant, so they fit aquatic and frozen zones without a protective sleeve.
Can I replace a tag on a running shelf?
Yes. Tags are self-contained, re-pair with the cloud CMS, and the CR2450 pack can be swapped without removing the bracket.
Price one aisle, or one chain.
Send your shelf plan — we respond with a tag layout and pricing within 48 hours.
