Anti-Theft Display Cable
DE31ELA

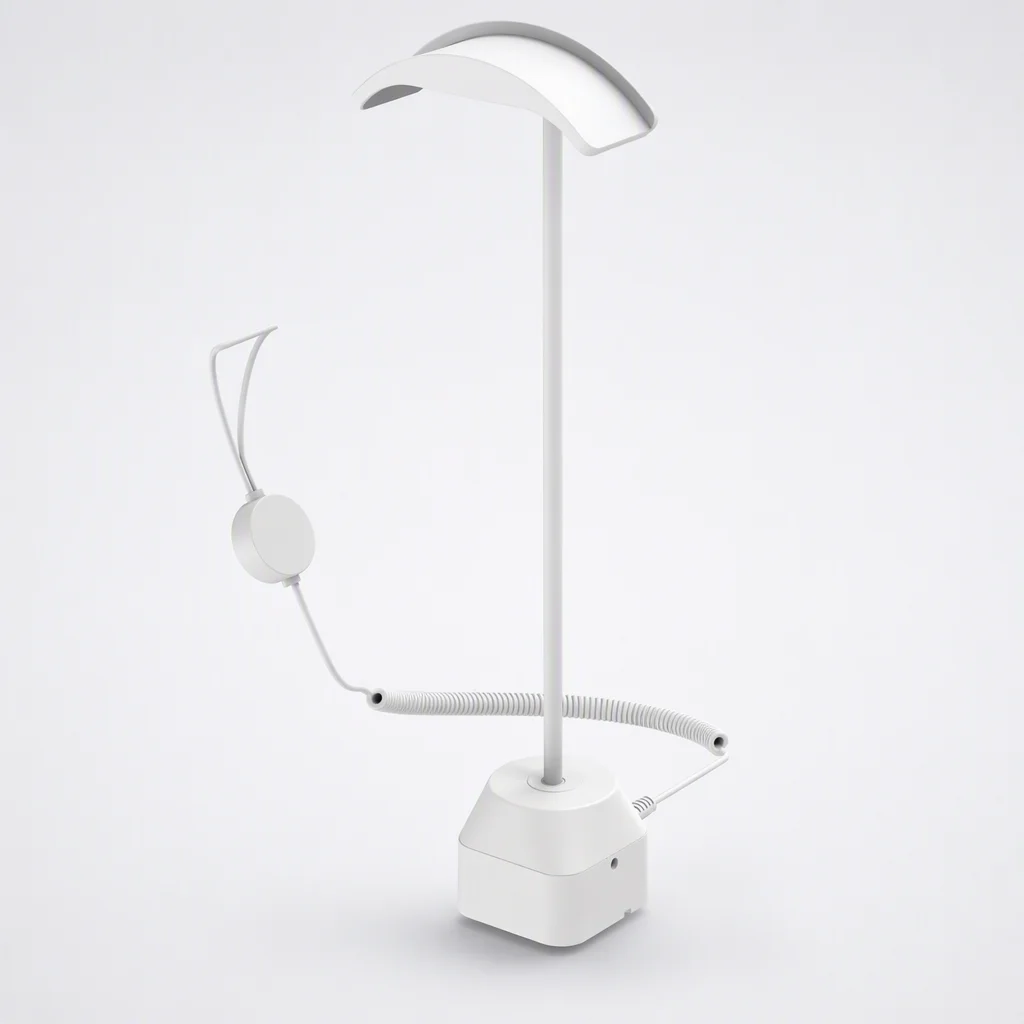

Over-ear or in-ear, DE31ELA docks them both. The interchangeable docking bases adapt to each headphone shape, the dual-port output charges while it protects, and the low-profile matte white host keeps an audio counter looking like an audio counter. The external spring cable stretches without tangling as shoppers lift each demo unit, and one 5V/2A adapter powers the whole lane from beneath the display deck.
Key facts
- Input5V/2A
- Power adapter5V/2A
- Output5V 1.5–2A
- Standby24 h
- Alarm≥90 dB
- Decoding2.4G
- Quiescent7 mA
- DevicesHeadphones · Earbuds
Why retailers choose it
- A universal base plus a dual-design solution secures both over-ear and in-ear headphones on one fixture.
- Dual-port output supports simultaneous charging and anti-theft protection.
- Multi-alarm system: touch point, cable cut and plug-out, at ≥90 dB.
- 7 mA quiescent current, <100 mW dissipation and 24 h standby — listening stations run all day on one 5V/2A adapter.
- Interchangeable docking bases swap with other product groups without replacing the host.
Full specifications
Datasheet
Every value below comes from the DE31ELA datasheet. Cable length for the external spring cable is configured per fixture — Contact us for your counter dimensions.
| Model | DE31ELA |
| Input | 5V/2A |
| Power adapter | 5V/2A |
| Output | 5V 1.5–2A |
| Colour | White |
| Material | ABS |
| Quiescent current | 7 mA |
| Quiescent dissipation | <100 mW |
| Standby time | 24 h |
| Decoding method | 2.4G |
| Alarm sound | ≥90 dB |
| Alarm methods | Touch point / plug-out / cable-cut |
| Cable length | Contact us |
| Dimensions | 130.48 × 58.90 × 48.1 mm |
| Application | Retail counters: headphones and earbuds |
Audio counters
Electronics and mobile accessory retailers hang over-ear demo units without losing the charge line.
Showrooms
Dedicated audio showrooms keep entire headphone walls on one rail with a single 2.4G key.
Listening stations
In-store interactive listening areas keep both earpieces reachable while the host stays hidden.
How the alarm responds
- Touch point detection on the docking base.
- Plug-out alarm when a headset leaves the socket.
- Cable-cut alarm on a severed sensor line.
- ≥90 dB alarm at the pickup point of the counter.
- 2.4G key decode for staff-only reset.
Built for the demo counter
- Universal base for extensive product compatibility.
- Dual-design holder for over-ear and in-ear form factors.
- Dual-port output: charge and protect at the same time.
- Low-profile host, easy to install under the fixture.
- <100 mW quiescent dissipation with 24 h standby.
Also in this family
Same rail, different reach.
The DE31 universal system uses one low-profile host across product groups — headphones here, cameras on the DE31CLA base.
Samples in one week.
Tell us your fixture layout — we respond with a drawing and pricing within 48 hours.
